Side Mount Sand Filter (SM 450 - SM 1200)
Features
UV resistant surface.
Easy to use water drain plug.
Filter made of fiberglass and polyester resin with bobbin wound.
Top diffuser ensures even distribution of water over top of the sand bed.
Air release valve enables easy release of trapped air during operation of the filter.
Materials used are dependable, non corrosive and suitable for all weather conditions.
Multi-port valve allows to select any of the valves/filter operation with a simple lever action.
Functions
Maximum working pressure
250kpa / 36psi / 2.5bar or 400kpa / 58psi / 4.0bar
Factory testing pressure
400kpa / 58psi / 4.0bar or 600kpa / 86psi / 6.0bar
Size of Silica Sand
0.4 mm to 0.8 mm
Maximum filtration velocity
50m3/ hr / m2
Maximum water temperature
49o C (120o F)
Application
These are specialist's production of bobbin wound with
e glass roving and resin isopthalic sand filters for commercial and communal swimming-pools, aquatic parks, water treatment plants, aquariums etc..

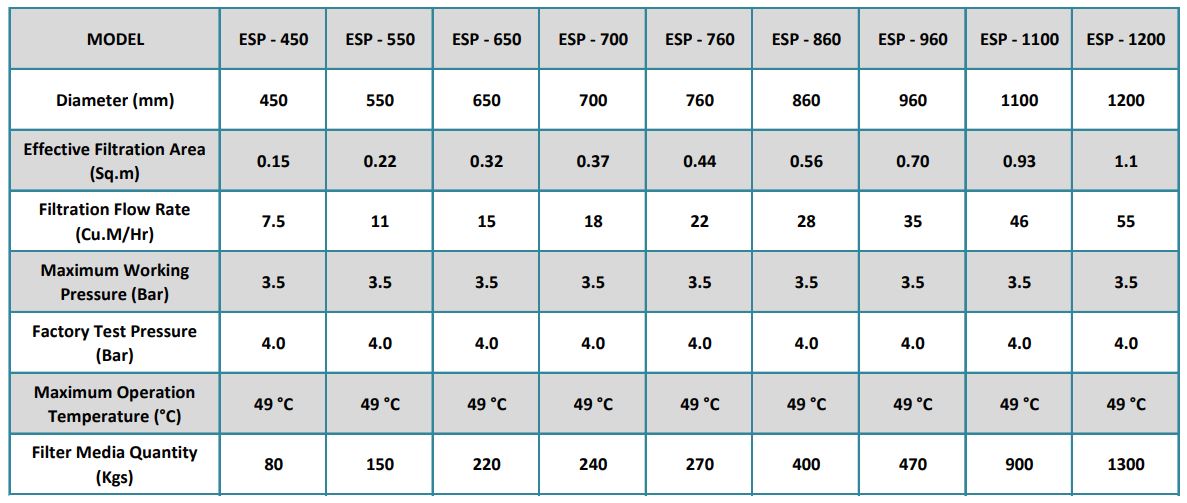

Technical Details
